Functions and Events to Work with Timers |
Timers generate events at specific time.
This time can be periodic or a one shot.
The timer can be setup in Vehicle Spy totally or you can optionally control it with C functions.
The table below shows the properties of the timer you can set in Vehicle Spy.
The timer functions include the ability to read and write the current time and the ability to enable the timer. Table 1: Timer Properties that can be Configured in Vehicle Spy Last Update:
Saturday, August 15, 2009
Timer Property
Description
Name
Name of the timer in C code.
Description
Description of what the timer does.
Type
Periodic or One shot.
RunAtStart
Should the timer run when Vehicle Spy Starts.
Initial Period
The period of the timer when Vehicle Spy Starts.
Resolution
Millisecond or Microsecond timer resolution.
Figure 1: Timer Functions to control the timer using C code.

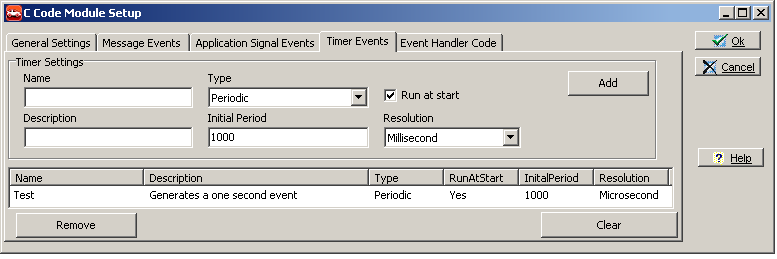

Figure 2: The Timer Events tab allows you to create a timer event at regular or single shot intervals.

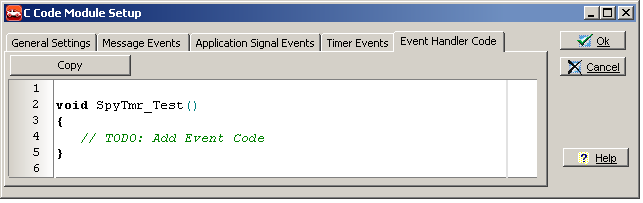

Figure 3: The timer event is a simple function with no arguments that is called when the timer expires.
