neoVI PRO Stand Alone Mode - Bus Decoder (Normal Mode)

Where the Voltages Go: The Analog Output Connector

The voltages for each channel are present on the db15 connector on neoVI PRO.

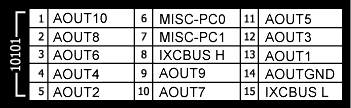

Figure A-6: The Analog Output Connector Pin out

The analog outputs are 0-5V outputs. The analog outputs all share an isolated ground wire so they can be wired to a single end measuring system without causeing grounding problems.

Please see diagrams below for connection to common DAQ systems.

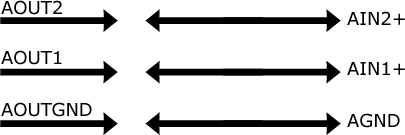

Figure A-7:Connection to single ended measurement system.

Figure A-8:Connection to differential measurement system.
